How to redirect owa to https exchange 2016

SHARE

How to redirect owa to https exchange 2016

redirect owa to https exchange 2016


Many administrates need to learn how to redirect owa to https exchange 2016, as the exchange server 2016 redirect https://mail.contoso.com to https://mail.contoso.com/owa.
 If you try to preview http://mail.contoso.com nor https://mail.contoso.com/owa you will get problem and will not redirect to the owa correctly.

I this Article you will learn step by step how to redirect owa to https exchange 2016.

Step by Step How to redirect owa from http to https in exchange 2016:-

 First Step:

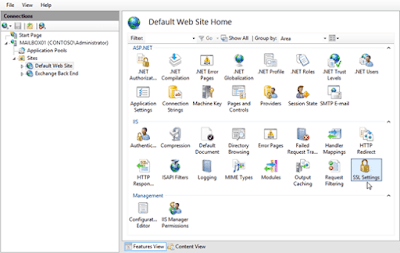

    1. Open IIS Manager on the Exchange server. An easy way to do this in Windows Server 2012 or later is to press Windows key + Q, type inetmgr, and select Internet Information Services (IIS) Manager in the results.
    2. Expand the server, and expand Sites.
    3. Select Default Web Site. and verify Features View is selected at the bottom of the page.
    4. In the IIS section, double-click SSL Settings.

    5. On the SSL Settings page, clear the Require SSL check box, and in the Actions pane, click Apply.




Second Step:-

You will use the following procedure to restore the setting on the other virtual directories where Require SSL was enabled by default:
    1. In IIS Manager, expand the server, expand Sites, and expand Default Web Site.
    2. Select the virtual directory, and verify Features View is selected at the bottom of the page.
    3. In the IIS section, double-click SSL Settings.

    How to redirect owa to https exchange 2016

    4. On the SSL Settings page, select the Require SSL check box, and in the Actions pane, click Apply.





    5- Repeat the previous steps on each virtual directory in the default website that had Require SSL enabled by default (except for /owa). The only virtual directories that don't have Require SSL enabled by default are /IES, /PowerShell, and /Rpc also.

    Third Step:-

    You will now write the link of the owa inside HTTP Redirect Field.

      1. In IIS Manager, expand the server, and expand Sites.
      2. Select Default Web Site. and verify Features View is selected at the bottom of the page.
      3. In the IIS section, double-click HTTP Redirect.

      How to redirect owa to https exchange 2016
      4. On the HTTP Redirect page, configure the following settings:
      5.  Select the Redirect requests to this destination check box, and enter the value https://mail.contoso.com/owa.
      6.  In the Redirect Behavior section, select the Only redirect requests to content in this directory (not subdirectories) check box.
       7. In the Status code list, verify Found (302) is selected.
       8. When you are finsihed those steps  please click on apply int the Actions.


      Fourth Step:-

      We enabled the redirection on the IIS in the last step, So all the setup will be inherited by all the vritual directories inside IIS.
      currently we will work to remove redirection from all the virtual directory under the main Defualt Web Site Directiory.

      We will use the follwing step to remove redirect setting:-

        1. In IIS Manager, expand the server, expand Sites, and expand Default Web Site.
        2. Select the virtual directory, and verify Features View is selected at the bottom of the page.
        3. In the IIS section, double-click HTTP Redirect.

      How to redirect owa to https exchange 2016

      4. On the HTTP Redirect page, change the following settings.
      5. Clear the Only redirect requests to content in this directory (not subdirectories) check box.
      6. Clear the Redirect requests to this destination check box.
      7. In the Actions pane, click Apply.
      8. Repeat the previous steps on each virtual directory in the default website.

      Fifth Step:-

      We need now to restart IIS Manager from the left side panel by selecting the server and after that from th Actions click on Restart.


      Default Require SSL and HTTP Redirect settings in the default website on an Exchange 2016 server


      The default Require SSL and HTTP Redirect settings for the default website and all virtual directories in the default website on an Exchange 2016 server are described in the following table.
      Website Virtual directory Require SSL HTTP Redirect
      Default Web Site n/a yes none
      Default Web Site _wmcs yes none
      Default Web Site API yes none
      Default Web Site aspnet_client (directory) yes none
      Default Web Site Autodiscover yes none
      Default Web Site ecp yes none
      Default Web Site EWS yes none
      Default Web Site IES no none
      Default Web Site mapi yes none
      Default Web Site Microsoft-Server-ActiveSync yes none
      Default Web Site OAB yes none
      Default Web Site owa yes
      Subdirectories:
      • auth: yes
      • Calendar: no
      • Integrated: yes
      • oma: yes
      none
      Default Web Site PowerShell no none
      Default Web Site Rpc no none

finally we need to test if the work that we did is success or not, you can do the following:-
You must check the following links:

http://mail.contoso.com
https://mail.contoso.com
http://mail.contoso.com/owa

All the above links must be redirected to the OWA https link this one: https://mail.contoso.com/owa
If you are not success you need to check the steps of  how to redirect owa to https exchange 2016 another time.

As you see all thing is simples and in pictures and you can apply all the steps above to make your owa (Outlook Web Access) redirects correctly to https.
If you need any help please don't hesitate to contact us or comment below and i will see your questions and make the best for you.
