DDR4 vs DDR3 RAM Comparison

DDR4 vs DDR3 RAM Comparison

For any user inquisitive about performance, memory speed is a crucial a part of the equation once it involves building your next system. DDR4 vs DDR3 RAM Comparison may apply to any user, from integrated graphics output to gambling and presume environments like finance or oil and gas. people with associate degree opinion on memory speed fall under 2 broad camps, from speech quicker memory has no impact, to the ‘make positive you get a minimum of XYZ’. Following on from our previous Haswell DDR3 scaling coverage, we've currently secured enough memory kits to perform an intensive take a look at of the impact of memory speed on DDR4 and Haswell-E.

DDR4 vs. DDR3

On the face of it, direct comparisons between DDR4 and DDR3 area unit tough to create. With the reverse from DDR2 to DDR3, there have been some platforms that might use each styles of memory and that we could perform tests on each within the same surroundings. the present scenario with DDR4 limits users to the acute platform solely, wherever DDR3 isn't welcome (except for a couple of high minimum-order-quantity SKUs that area unit rarer than hens teeth). The platform dictates the memory compatibility, and therefore the main characteristics of DDR4 area unit easy.

DDR4 brings to the table a lower operational voltage, down from one.5 volts to one.2 volts. this is often the most characteristic touted by the memory makers and people that use DDR4. It doesn't sound sort of a ton, particularly after we may be managing systems from 300W to 1200W quite simply below Haswell-E. The quoted numbers area unit a 1-2W saving per module per system, that for a totally laden home-user desktop may approach 15W at the high finish of savings over DDR3, except for a server farm with a thousand CPUs, this suggests a 15kW saving that adds up. The low voltage specification for DDR4L comes down from DDR3L in addition, from 1.35 volts to one.05 volts.

DDR4 vs DDR3 RAM Comparison
DDR 1.80 V 2.50 V
DDR2 1.80 V 1.90 V
DDR3 1.35 V 1.50 V 1.65 V
DDR4 1.05 V 1.20 V 1.35 V

The lower voltage is additionally increased by voltage reference ICs before every chip so as to confirm that a regular voltage is applied across every of them severally instead of the complete module directly. With DDR3, one voltage supply was applied across the complete module which might cause a additional important fall, poignant stability. With this new style any fall is IC dependent and might be corrected.

The other main adjustment to form from DDR3 to DDR4 is that the rated speed. DDR3 JEDEC specifications started at 800 MTs and rapt through to 1600 MTs, whereas a number of the most recent Intel DDR3 processors rapt up to 1866 and AMD up to 2133. DDR4’s initial JEDEC for many client and server platforms is ready at 2133 megacycle, as well as a rise in latency, however is intended to confirm that persistent transfers area unit faster however overall latency is appreciate that of DDR2 and DDR3. Technically there's a DDR4-1600 specification for situations that wish the cut price basement memory and area unit unfazed by actual performance.

As a results of this increase in speed, overall information measure is exaggerated also.

DDR4 vs DDR3 RAM Bandwidth Comparison
Bus Clock Internal Rate Prefetch Transfer Rate Channel Bandwidth
DDR 100-200 MHz 100-200 MHz 2n 0.20-0.40 GT/s 1.60-3.20 GBps
DDR2 200-533 MHz 100-266 MHz 4n 0.40-1.06 GT/s 3.20-8.50 GBps
DDR3 400-1066 MHz 100-266 MHz 8n 0.80-2.13 GT/s 6.40-17.0 GBps
DDR4 1066-2133 MHz 100-266 MHz 8n 2.13-4.26 GT/s 12.80-25.60 GBps

Latency moves from DDR3-1600 at CL eleven to DDR4-2133 at CL fifteen, that was associate degree expected jump as JEDEC tends to extend CL by two for a jump in frequency. whereas having a latency of fifteen clocks may encounter as worse, the actual fact that the clocks ar at 2133 MTs ensures that the performance continues to be comparable. At DDR3-1600 and CL11, time to initiate a browse is thirteen.75 nanoseconds, compared to fourteen.06 nanoseconds for DDR4-2133 at CL15, that could be a two jump.

One of the items that may offset the rise in latency is that CL15 appears to be a {standard|a typical} standard regardless of what frequency the memory is. presently on the market we have a tendency to ar seeing modules vary from DDR4-2133 CL15 up to DDR4-3200 CL15 or DDR4-3400 CL16, marking a browse latency all the way down to nine.375 nanoseconds. With DDR3, we have a tendency to saw kits of DDR3-2400 CL10 for eight.33 nanoseconds, showing however aggressive memory producing over the lifespan of the merchandise will increase the potency.

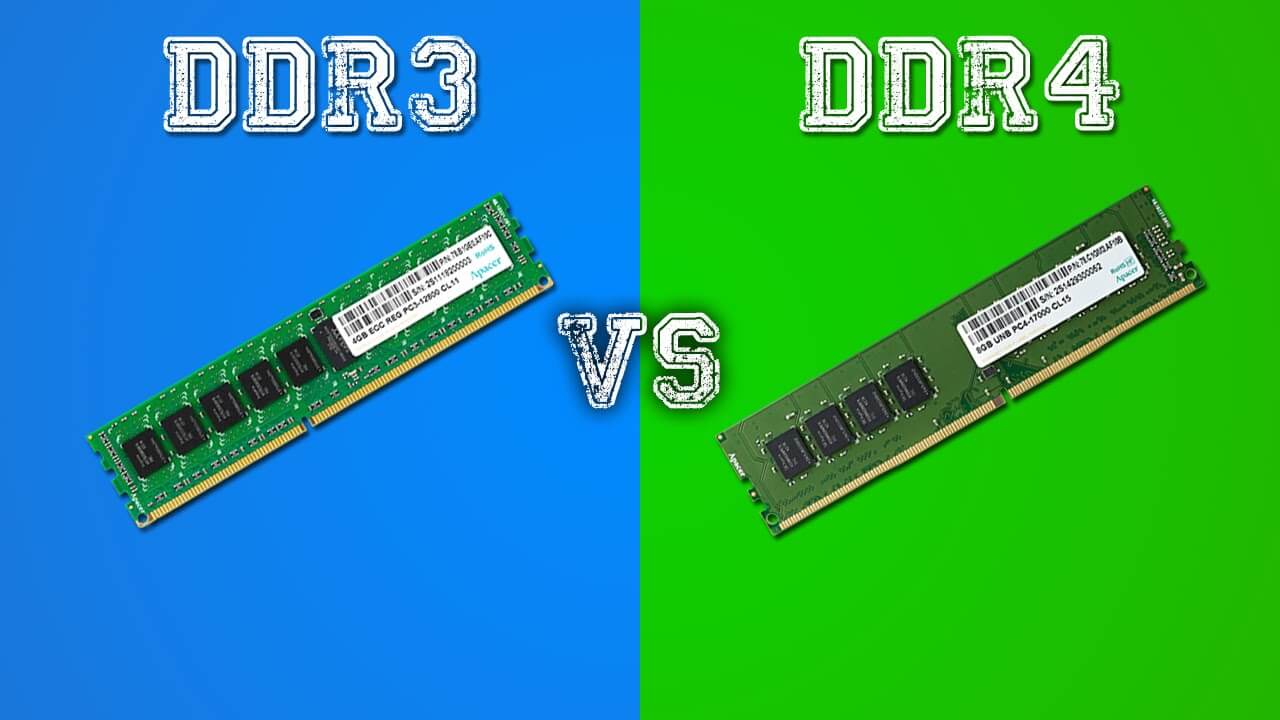

Another noticeable distinction from DDR3 to DDR4 is that the style of the module itself.

DDR4 vs. DDR3

DDR4 vs. DDR3
There area unit a big range of alternative variations between DDR4 and DDR3, however most of those be the electronic engineer/design role for the memory and motherboard makers, like signal termination, further programmable lateness and internal register adjustment for DDR4 vs DDR3 RAM Comparison.
